Indlu yangasese yangasese eLungileyo yabasetyhini

Yangasese Yangasese eLungileyo Indlu yeSikhongozelo esiFakelweyo Umfanekiso

Inkcazelo emfutshane:

Uyilo lwendlu yangasese yabasetyhini kwizindlu ze-GS zenziwa umntu.Indlu inokushukunyiswa xa iyonke, okanye ipakishwe kwaye ihanjiswe emva kokuchithwa, emva koko idityaniswe kwakhona kwindawo kwaye isetyenziswe emva kokudityaniswa kwamanzi nombane.

QHAGAMSHELANA

Iinkcukacha zeMveliso

Inkcazo

Ividiyo

Iithegi zeMveliso

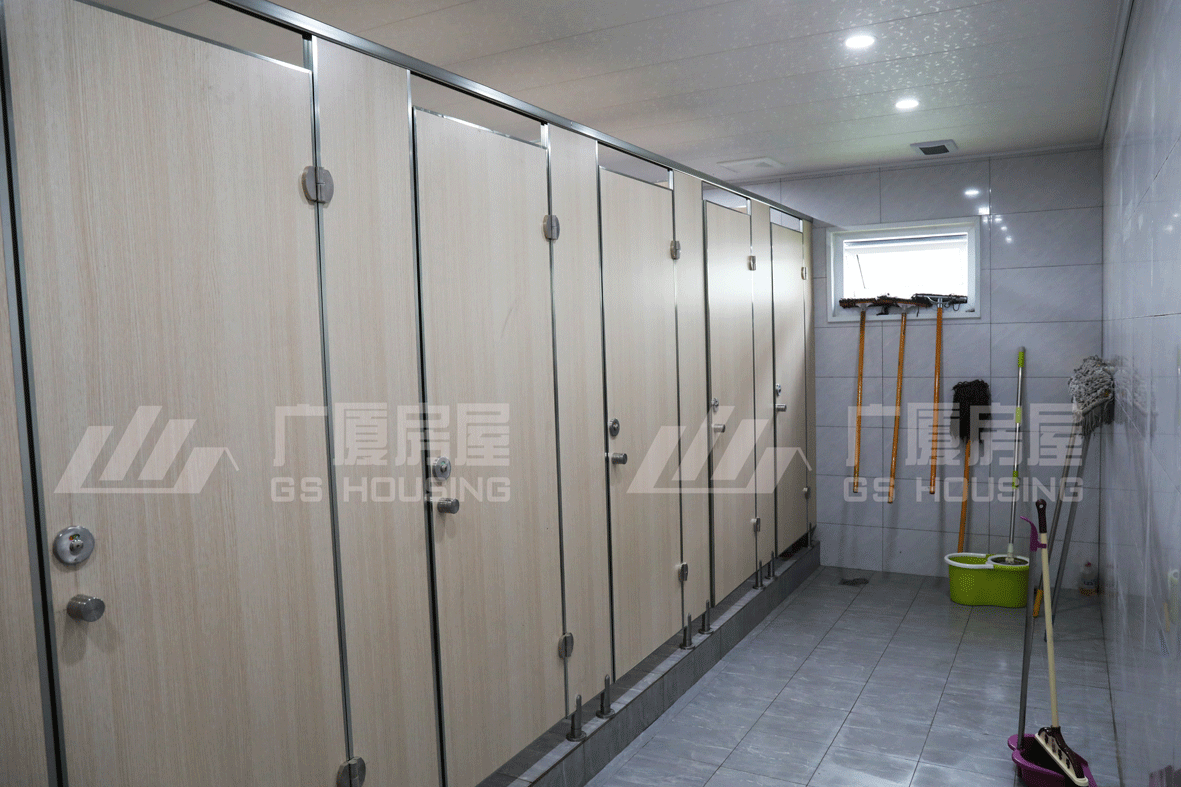

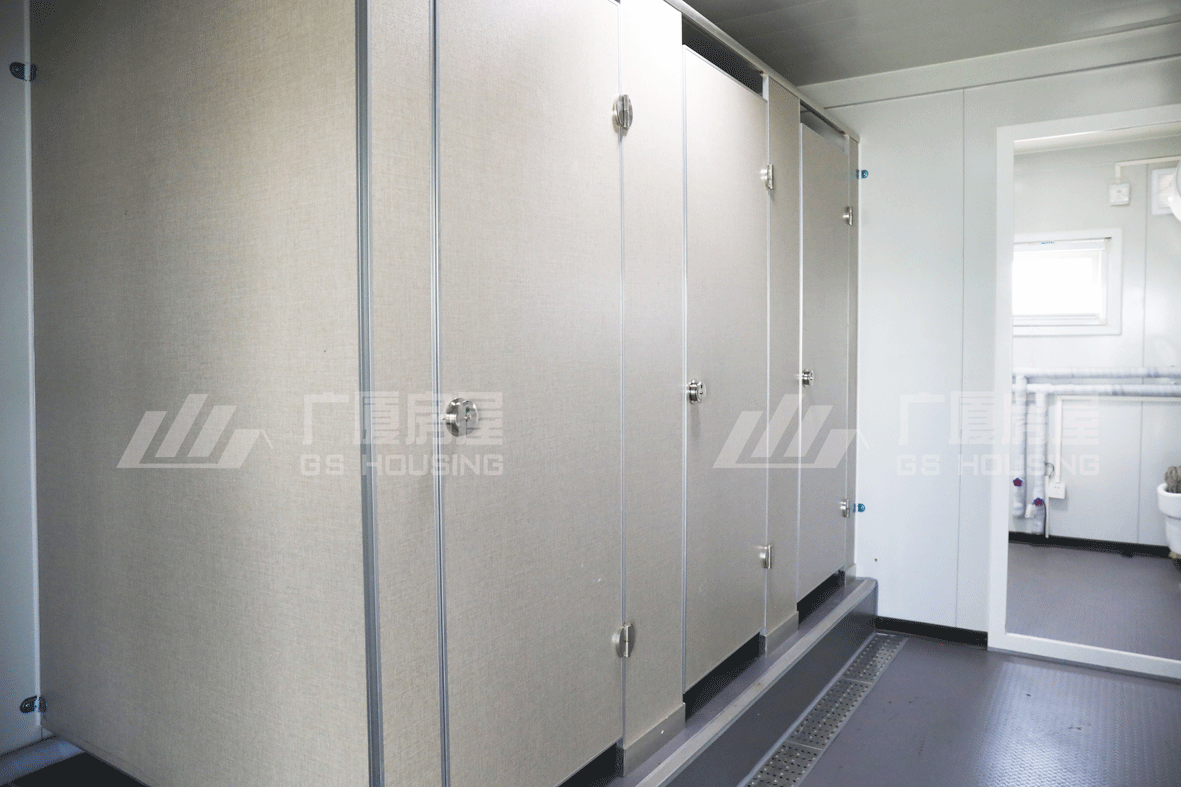

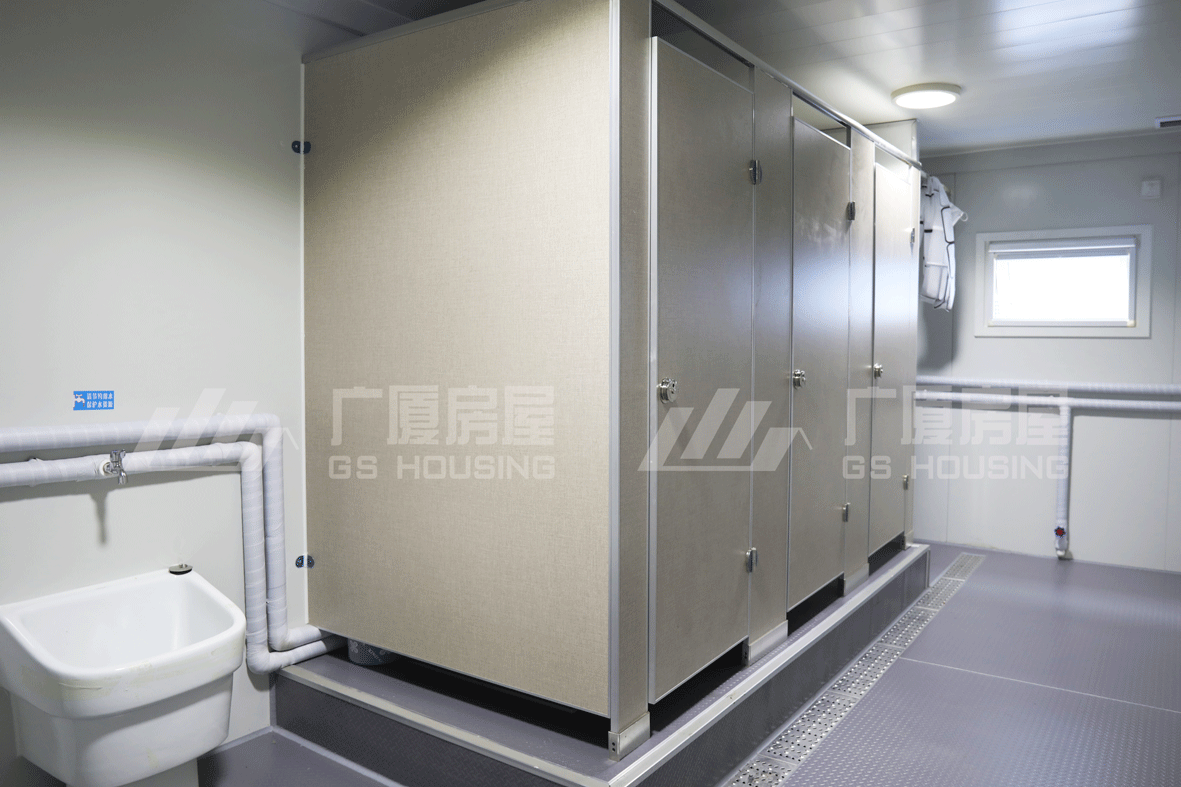

Impahla yococeko kwindlu yangasese yangasese yabasetyhini iquka i-5pcs squatting toilet kunye neetanki zamanzi, i-1pcs mop sink kunye ne-faucet, i-1pcs column basin kunye ne-faucet, izibonelelo zangaphakathi zingayilwa ngokweemfuno ezahlukeneyo zeprojekthi.

Ukongeza, ububanzi obuqhelekileyo bendlu yokuhlambela yi-2.4/3M, indlu enkulu okanye encinci yendlu inokwenziwa ngokwezifiso.

Ipakethe yeZimpahla zococeko

Indlu yangasese yabasetyhini-&-iBhafu-iGumbi-4

IZakhiwo ezikumgangatho oPhezulu

Isakhelo esiphezulu

Umtha ongundoqo:
3.0mm ubungqingqwa iprofayile yentsimbi eqengqiwe ebandayo, imathiriyeli:SGC340;
I-Sub-beam: ithatha i-7pcs galvanizing steel, izinto eziphathekayo: Q345B, ikhefu: 755mm.
Ubukhulu bezindlu zeemodyuli zemarike yi-2.5-2.7mm, ubomi benkonzo bu malunga ne-15 iminyaka.qwalasela iprojekthi yaphesheya kolwandle, ukugcinwa kwayo akuyondlwan’ iyanetha, siye sajiyisa intsimbi yentsimbi yezindlu, iminyaka engama-20 ubomi bokusetyenziswa buqinisekisiwe.

Isakhelo esisezantsi:

Umtha ongundoqo:
3.5mm ubungqingqwa iprofayile yentsimbi eqengqiwe ebandayo, imathiriyeli:SGC340;
Umqadi ongaphantsi: 9pcs "π" ochwetheziweyo wentsimbi, imathiriyeli:Q345B,
Ubukhulu bezindlu zeemodyuli zemarike yi-2.5-2.7mm, ubomi benkonzo bu malunga ne-15 iminyaka.qwalasela iprojekthi yaphesheya kolwandle, ukugcinwa kwayo akuyondlwan’ iyanetha, siye sajiyisa intsimbi yentsimbi yezindlu, iminyaka engama-20 ubomi bokusetyenziswa buqinisekisiwe.

Imihlathi:
I-3.0mm Iprofayili yentsimbi epholileyo egotyiweyo, izinto eziphathekayo: SGC440, iikholamu ezine zinokutshintshwa.
Iintsika zidityaniswe nesakhelo esingaphezulu kunye nesakhelo esisezantsi esineebholiti zeHexagon zentloko (amandla: 8.8)
Qinisekisa ukuba ibhloko ye-insulation izaliswe emva kokugqiba ukufakwa kweekholomu.
Yongeza iiteyipu zokukhusela phakathi kweentlangano zezakhiwo kunye neepaneli zodonga ukukhusela umphumo wokubanda kunye neebhuloho zokushisa kunye nokuphucula ukusebenza kokugcinwa kobushushu kunye nokugcinwa kwamandla.

Iiphaneli zodonga:
Ubukhulu: I-60-120mm ipaneli yesangweji yentsimbi eshinyeneyo,
Ibhodi yangaphandle: Ibhodi yangaphandle yenziwe nge-0.42mm yepeyinti ye-orenji ye-orenji ye-Alu-zinc ipleyiti yentsimbi enemibala, i-HDP yokugquma,
I-Insulation layer: 60-120 mm obukhulu be-hydrophobic basalt wool (ukhuseleko lokusingqongileyo), ubuninzi ≥100kg/m³, ukusebenza kokutsha yiKlasi A engatshiyo.
Iphaneli yodonga lwangaphakathi: Iphaneli yangaphakathi ithatha i-0.42mm ecocekileyo yeplati yentsimbi ye-Alu-zinc enemibala, ukugquma kwe-PE, umbala: grey emhlophe,

Ukuqinisekisa ukugqunywa kobushushu bempahla, ukusebenza kokufakwa kwesandi.

Isicelo sezindlu zangasese zabasetyhini

Ufakelo lwendlu yangasese luntsonkothile ngakumbi kunezindlu eziqhelekileyo, kodwa sinolwazi oluneenkcukacha lokufakela kunye neevidiyo, kwaye ividiyo ye-intanethi inokuqhagamshelwa ukunceda abathengi basombulule ingxaki yokufakela, ewe, abaphathi bofakelo banokuthunyelwa kwindawo. ukuba kuyimfuneko.

Indlu yangasese yabasetyhini-&-iBhafu-iGumbi-3

Kukho ngaphezulu kwama-360 abasebenzi abafakelweyo abafakelweyo kwizindlu ze-GS, ngaphezulu kwe-80% basebenza kwi-GS Housing kwiminyaka esi-8.Okwangoku, bafake iiprojekthi ezingaphezu kwama-2000 ngaphandle kwamagingxigingxi.

Iziseko zeMveliso Intshayelelo

Iziseko ezihlanu zemveliso ye-GS Housing inomthamo obanzi wemveliso yonyaka ngaphezulu kwe-170,000 yezindlu, imveliso eyomeleleyo ebanzi kunye namandla okusebenza abonelela ngenkxaso eqinileyo yemveliso yezindlu.Kunye neefektri eziyilwe ngohlobo lwegadi, indawo engqongileyo intle kakhulu, zikhulu, zintsha kunye neziseko zokuvelisa imveliso yemodyuli yanamhlanje eTshayina.Iziko elikhethekileyo lophando lwezindlu liye lasekwa ukuqinisekisa ukuba libonelela abathengi ngendawo ekhuselekileyo, yokusingqongileyo, enobuhlobo, ekrelekrele kunye nekhululekileyo edibeneyo yokwakha.

Isiseko sokuvelisa kwifektri ehlakaniphile eTianjin

Amakhava: 130,000㎡

Umthamo wonyaka wemveliso: 50,000 usete izindlu

Umzi-mveliso wohlobo lwegadi-isiseko semveliso eJiangsu

Amagquma: 80,000㎡

Umthamo wonyaka wemveliso : 30,000 iseti izindlu

Imodeli ye-6S yemveliso- isiseko semveliso eGuangdong

Amagquma: 90,000 ㎡

Umthamo wonyaka wemveliso: 50,000 usete izindlu

Isiseko esisebenzayo semveliso-mveliso eLiaoning

Amakhava: 60,000㎡

Umthamo wonyaka wemveliso: 20,000 iseti izindlu.

Isiseko soveliso lwefektri yendalo eSichuan

Amakhava: 60,000㎡

Umthamo wonyaka wemveliso: 20,000 iseti izindlu.

I-GS Housing ineendlela eziphambili ezixhasayo zemveliso yezindlu zemodyuli, kubandakanywa imigca yemveliso yebhodi edibeneyo ezenzekelayo, imigca yokutshiza ye-Graphene electrostatic, iindibano zocweyo ezizimeleyo, iindibano zocweyo zocango kunye neefestile, iindibano zocweyo zomatshini, iindibano zocweyo, oomatshini bokusika amadangatye e-CNC, kunye nokusika i-laser. oomatshini, oomatshini bokuwelda be-arc bantywiliselwa, ikharbon diokside ekhuselwe ukuwelda, oomatshini bokushicilela abanamandla aphezulu, oomatshini bokugoba abandayo, oomatshini bokungqusha, ukugoba kwe-CNC kunye noomatshini bokucheba njl njl. Imveliso ye-CNC, eqinisekisa ukuba izindlu ziveliswa kwangexesha, ngokufanelekileyo nangokuchanekileyo.

Ngaphambili: Yangasese esele yenziwe yabasetyhini kunye neGumbi lokuhlambela

Okulandelayo: Indlu yangasese yaMadoda eshukumayo kunye neNdlu yesingxobo sokuhlambela

Ubume bendlu yangasese yabasetyhini
Inkcazo	LWH(mm)	Ubungakanani bangaphandle 6055 * 2990/2435 * 2896 Ubungakanani obungaphakathi 5845 * 2780/2225 * 2590 ubungakanani obulungiselelweyo bunokubonelelwa
	Uhlobo lophahla	Uphahla olusicaba olunemibhobho emine yangaphakathi (Imibhobho yokukhupha ubungakanani obunqamlezileyo: 40 * 80mm)
	Ivenkile	≤3
Umhla woyilo	Ubomi benkonzo eyilwe	Iminyaka engama-20
	Umgangatho uhlala umthwalo	2.0KN/㎡
	Uphahla luhlala umthwalo	0.5KN/㎡
	Umthwalo wemozulu	0.6KN/㎡
	I-Sermic	8 idigri
Ulwakhiwo	Umqolo	Inkcazo: 210 * 150mm, intsimbi epholileyo eyenziwe ngegalvanized, t = 3.0mm Material: SGC440
	Umqadi ophambili wophahla	Inkcazo: 180mm, intsimbi epholileyo eyenziwe ngegalvanized, t = 3.0mm Material: SGC440
	Umqadi ophambili womgangatho	Ubalulo: 160mm, intsimbi epholileyo eyenziwe ngegalvanized, t = 3.5mm Material: SGC440
	Umqadi wophahla	Inkcazo: C100 * 40 * 12 * 2.0 * 7PCS, umqulu obandayo weGalvanized C, t = 2.0mm Material: Q345B
	Umqadi ophantsi womgangatho	Iinkcukacha: 120 * 50 * 2.0 * 9pcs,”TT”milo icinezelwe intsimbi, t=2.0mm Material:Q345B
	Peyinta	Umgubo wokutshiza i-electrostatic lacquer≥80μm
Uphahla	Iphaneli yophahla	I-0.5mm i-Zn-Al ifakwe ishidi lentsimbi enemibala, emhlophe-ngwevu
	Izinto zokugquma	I-100mm yoboya beglasi kunye ne-Al foil enye.Uxinaniso ≥14kg/m³, Udidi A olungatshiyo
	Isilingi	I-V-193 0.5mm icinezele i-Zn-Al ishidi lentsimbi elinemibala, isikhonkwane esifihliweyo, esimhlophe-ngwevu
Umgangatho	Umphezulu womgangatho	Ibhodi yePVC ye-2.0mm, ingwevu emnyama
	Isiseko	Ibhodi yefayibha yesamente 19mm, ubuninzi≥1.3g/cm³
	Umaleko wobumanzi	Ifilimu yeplastiki yobungqina bokufuma
	Ipleyiti yokutywina esezantsi	0.3mm Zn-Al ibhodi coated
Udonga	Ukutyeba	75mm ipleyiti yesangweji yentsimbi enombala ongqindilili;Ipleyiti yangaphandle: i-0.5mm ye-orenji ye-orenji i-aluminiyam efakwe i-zinc ipleyiti yentsimbi enemibala, i-ivory emhlophe, i-PE yokwambathisa;Ipleyiti yangaphakathi: i-0.5mm i-aluminium-zinc ifakwe ipleyiti ecocekileyo yentsimbi yombala, i-grey emhlophe, i-PE yokugqoka;Adopt "S" uhlobo lweplagi ujongano ukuphelisa umphumo webhulorho ebandayo kunye neshushu
Udonga	Izinto zokugquma	uboya belitye, ubuninzi≥100kg/m³, Udidi A olungatshiyo
Umnyango	Inkcazo (mm)	WH=8402035mm
Umnyango	Izinto eziphathekayo	Isivalo sentsimbi
Ifestile	Inkcazo (mm)	ifestile:WXH=800*500;
	Imathiriyeli yesakhelo	Intsimbi yePastic, 80S, Ngentonga yokulwa nobusela, Ifestile yesikrini engabonakaliyo
	Iglasi	4mm + 9A + 4mm iglasi ephindwe kabini
Umbane	I-Voltage	220V ~ 250V / 100V ~ 130V
	Ucingo	Ucingo olungundoqo: 6㎡, ucingo lwe-AC:4.0㎡, ucingo lwesokethi:2.5㎡, ucingo lokutshintsha ukukhanya:1.5㎡
	Umqhekezi	Umqhekezi wesekethe omncinci
	Ukukhanyisa	Izibane eziphindwe kabini, i-18W
	Isiseko	2pcs 5 imingxuma socket 10A, 1pcs 3 imingxuma AC socket 16A, 1pcs uqhagamshelo inqwelomoya switsha 10A, (EU / US ..standard)
Ubonelelo lwaManzi & neNkqubo yokuKhusela amanzi	Inkqubo yokubonelela ngamanzi	DN32,PP-R,umbhobho wonikezelo lwamanzi kunye nezixhobo
Ubonelelo lwaManzi & neNkqubo yokuKhusela amanzi	Inkqubo yokukhupha amanzi	De110/De50, UPVC Umbhobho wokuhambisa amanzi kunye nezixhobo
Isakhelo sentsimbi	Imathiriyeli yesakhelo	Umbhobho ophindwe kabini wesikwere 口40402
	Isiseko	Ibhodi yefayibha yesamente 19mm, ubuninzi≥1.3g/cm³
	Umgangatho	I-2.0mm engqindilili engatyibilikiyo phantsi kwePVC, ingwevu emnyama
Impahla yococeko	Isixhobo sococeko	Izindlu zangasese ezi-5 zokugquma kunye neetanki zamanzi, isinki yokumpompoza e-1 kunye netephu, izitya ezi-2 zekholamu kunye nempompo
	Ukwahlulahlula	1200 * 900 * 1800 Ukulinganisa ukwahlula iinkozo zomthi, i-aluminium alloy card slot, intsimbi engenasici.
	Izifakelo	Ibhokisi yethishu e-1, ii-pcs ezi-2 zezibuko lokuhlambela, i-gutter yentsimbi, i-grate yensimbi engenasici, i-1 pcs standy floor drain
Abanye	Phezulu kunye nekholamu ukuhombisa inxalenye	I-0.6mm i-Zn-Al ifakwe ishidi yensimbi yombala, emhlophe-engwevu
	Ukutyibilika	0.8mm Zn-Al coated umbala wentsimbi skirting, white-grey
	Iingcango zokuvala	I-1 pcs umnyango okufutshane, iAluminiyam (ukhetho)
	Ifeni yokukhupha	1 iipcs eludongeni exhaust fan, intsimbi stainless ikepusi engenamvula
Ukwamkela ulwakhiwo olusemgangathweni, izixhobo kunye nezifakelo zihambelana nomgangatho wesizwe.ngokunjalo, ubungakanani obulungiselelweyo kunye nezibonelelo ezinxulumene nazo zinokubonelelwa ngokweemfuno zakho.
